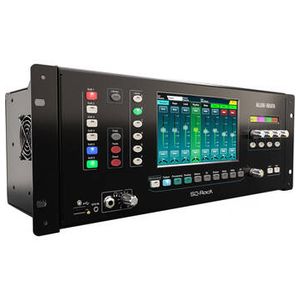

Allen & Heath SQ-Rack 48-Channel / 36-Bus Rackmoun

Experience the power of digital mixing in a compact 4 RU enclosure with the Allen & Heath SQ-Rack - a 48-channel - 36-bus digital mixing console well suited for live sound - corporate A/V - recording studios - and houses of worship The SQ-Rack features 16 professional-quality microphone preamps - eight stereo FX engines with dedicated return channels - and access to the RackExtra FX library with dozens of emulation of legendary classic reverbs - delays - modulators - and more The mixer's 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups - while the Auto Mic Mixing function offers quick and easy operation over multiple microphones for conferences - panel talks - and more At the heart of the SQ-Rack lies the 96 kHz XCVI Core FPGA engine - which delivers professional - high-resolution audio quality - ultralow latency (less than 07 ms) - variable bit depth for precision and noise performance - mix coherency down to the sample - and the power to handle high channel / mix counts and ample FX processing The SQ's DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer's inputs and mix channels - all without adding system latency or setup hassles

Features: 16 Microphone Preamps, 7-inch Capacitive Touchscreen, 96 kHz XCVI FPGA Processing, Eight Stereo FX Engines with Returns, 32 x 32 96 kHz USB Audio Interface, AES Output, 12 Stereo Mixes + LR, 8 Assignable SoftKeys + 4 Soft Rotaries, SLink Port for Remote Audio & Expansion, SQ MixPad and Control Apps

Max I/O Capacity: 48x Input / 14x Output

Number of Analog Input Channels: 20 (16 Mono / 4 Stereo)

Number of Mic Preamps: 16

Number of Analog Output Channels: 14

Mix Routing: 12x Stereo Main LRC3x Stereo Matrix8x Stereo FX Return

Presets: Yes

Display: LCD Touchscreen

Faders & Level Adjustment: No

Dynamic Processing: Input Channels:Compressor

EQ: 4-Band Parametric

Graphic EQ: Yes

Solo/Mute: Mute per Input Channel

Audio Delay: Yes

Automatic Mic Mixing: Yes

Sample Rates: 96 kHz

Bit Depth: 96-Bit

Signal Generator: No

Analog Inputs: 16x XLR 3-Pin Balanced Stereo Mic/Line Input1x XLR Talkback Input4x 1/4-inch Stereo Line Input (2 Stereo Pairs)1x 1/4-inch Footswitch Input

Analog Outputs: 10x XLR 3-Pin Mono Output2x XLR Stereo Output (1 Stereo Pair)

Digital I/O: 1x XLR AES3

MIDI I/O: No

USB I/O: 1x USB-B (Host Connection)1x USB-A (External Memory - Recording)

USB I/O Capacity: 32x Input / 32x Output

Expansion Ports: 1x I/O Card

Wireless: Proprietary Wireless

External Display I/O: No

Max Multitrack Recording: 48 Tracks

Media Support: USB Drive

OS Compatibility: Windows / macOS

Rack Mountable: Yes

Rackmount Size: 4 U
