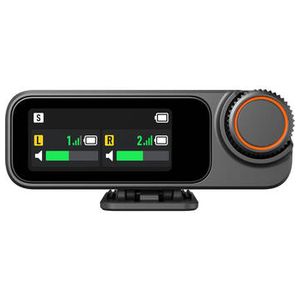

DJI Mic 3 Camera-Mount Wireless Receiver Product Image

DJI Mic 3 Camera-Mount Wireless Receiver


Product Description

Part of DJI's Mic 3 wireless system - the Camera-Mount Wireless Receiver is a compact - 2-channel receiver available individually to expand your existing setup or serve as a backup It supports stereo and mono audio channels and can be paired with up to four Mic 3 transmitters and seven additional receivers for multi-person audio capture across a variety of production environments The receiver features support for both timecode input and output for improved postproduction workflowsA 35mm TRS output allows direct audio recording to your camera - while a dedicated 35mm headphone jack provides real-time monitoring An included USB-C adapter allows you to plug it directly into your mobile device Purchase the separately available Mic Series Camera Adapter for direct compatibility with Sony MI shoes Dual-band wireless and Bluetooth 54 technology ensure communication from up to 1312' away An AMOLED touchscreen and onboard controls let you adjust parameters directly from the receiver Further control is available via the DJI Mimo mobile app The built-in rechargeable battery delivers up to 10-hour runtime

Features: For DJI Mic 3 Wireless Mic Systems, 3.5mm Line Out, 3.5mm Headphones Out, AMOLED Touchscreen, Onboard Controls, Timecode I/O Support, Dual-Band Wireless, Bluetooth 5.4, USB-C Audio Adapter, 10-Hour Battery Runtime, Camera-Mount 4-Channel Receiver Unit

Wireless Technology: Digital 2.4 GHz / Digital 5.8 GHz / Bluetooth

Diversity: Non-Diversity

RF Frequency Band: 2400 to 24 - 835 MHz / 5150 to 5250 MHz / 5250 to 5350 MHz / 5470 to 5725 MHz / 5725 to 5850 MHz

Max Operating Range: 1312.3' / 400 m (Line of Sight)262.5' / 80 m (with Obstruction)

Max Transmitters per Band: 4

Built-In Recorder: No

Timecode Support: Yes

Mobile App Compatible: Yes: Android & iOSApp Name: DJI Mimo

Receiver Type: 1x Camera-Mount

Mounting Options: Shoe-Mount (with Included Hardware)USB-C Plug-In (with Included Adapter)

Antenna: 1x Internal

Number of Audio Channels: 2

Audio I/O: 1x 1/8-inch / 3.5 mm TRS Unbalanced Output

Network I/O: No

USB/Lightning Connectivity: 1x USB-C Female

Display: OLED

Power Requirements: Battery

Included Transmitters: No Transmitters Included

Microphone Type: No Microphone Included

Receiver Battery Type: 1x Built-In Rechargeable - 275 mAh

Receiver Battery Life: 10 Hours

Battery Charging Time: 50 Minutes

Included Charging Case: No - Available Separately

AC/DC Power Adapter: No

Input Power: 5 VDC

Environmental Resistance: No

Dimensions: 2.1 x 1.1 x 0.9-inch / 53.9 x 28.7 x 22 mm

Weight: 0.9 oz / 25.1 g
