Godox Cube-OP3 RX Wireless Receiver (24 GHz) Product Image

Godox Cube-OP3 RX Wireless Receiver (24 GHz)


Product Description

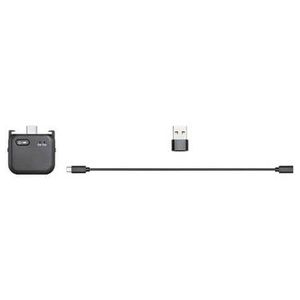

Designed ideally to be used in conjunction with the DJI OSMO Pocket 3 camera - the Godox Cube-OP3 Receiver is a part of the 24 GHz Cube-OP3 wireless system The Cube-OP3 receiver mates directly to the OSMO Pocket 3 camera via USB-C - making it perfect for content creation and vlogging This system is designed for solo recordingThe 24 GHz frequency avoids interference as it's rarely used by common interference sources - and the Cube-OP3 system sports up to 656' transmission distances and latency under 20 ms With the USB-C plugs of the Cube-OP3 system - you can enjoy wide compatibility with most devices The Godox Cube-OP3 Receiver includes a USB-C female to male adapter cable and a USB-C female to USB-A male plug adapter

Features: For Content Creation, Vlogging, Solo Shoots with Smart Devices, Integrates with DJI OSMO Pocket 3 Camera, 656' Transmission Distance, 35-Minute, 18W Fast-Charge Support, DJI Battery Handle Charging Support, USB-C Plug for Universal Compatibility, Includes USB-C Cable, USB-A Plug Adapter

Wireless Technology: Digital 2.4 GHz

Diversity: Non-Diversity

RF Frequency Band: 2 - 400 MHz

RF Channel Scanning: Auto-Scan

Max Operating Range: 656.2' / 200 m

Latency: < 20 ms

Encryption: No

Built-In Recorder: Yes (on Receiver)

Timecode Support: No

Mobile App Compatible: Yes: Android & iOSApp Name: Godox MicFunctionality: Adjust Settings - Firmware Update

Receiver Type: 1x Plug-In (USB-C)

Mounting Options: 1/4-inch -20 Female Thread (with Included Hardware)

Antenna: 1x Internal

Number of Audio Channels: 2

Audio I/O: No

Slot-Mount I/O Adapters: No

Network I/O: No

USB/Lightning Connectivity: 1x USB-C Male

Frequency Response: 20 Hz to 20 kHz

Display: No

Power Requirements: Bus Power (USB)

Included Transmitters: No Transmitters Included

Antenna: Internal

Input Level: Microphone

Included Instrument Cable: No

Bias/Plug-In & Phantom Power: N/A - No External Mic Support

USB I/O: 1x USB-C

Muting: Off/On Switch

Auto-Level/Gain: Yes

Frequency Response: 20 Hz to 20 kHz

Sync Method: 2.4 GHz QPSK

Microphone Type: No Microphone Included

Polar Pattern: Omnidirectional

Intended Sound Sources: Speech

Frequency Response: 20 Hz to 20 kHz

Maximum SPL: 115 dB

Color: Black

Transmitter Battery Type: 1x Built-In Rechargeable - 97 mAh

Transmitter Battery Life: 10 Hours

Battery Charging Time: 35 Minutes

Included Charging Case: No

Input Power: 9 VDC at 2 A

Environmental Resistance: No

Dimensions: 1.5 x 1.2 x 1.1-inch / 3.8 x 3 x 2.8 cm

Dimensions: Transmitter:0.9 x 0.9 x 0.4-inch / 2.3 x 2.3 x 1 cmReceiver Module:1.5 x 1.2 x 1.1-inch / 3.8 x 3 x 2.8 cm

Weight: 0.7 oz / 20 g

Weight: Transmitter:0.2 oz / 7 gModular Receiver:0.7 oz / 20 g
