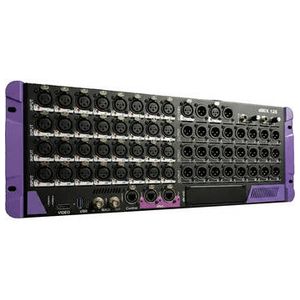

Violet Audio dMix 128-Channel Digital Audio Matrix

Features: For Studios, Live, Broadcast, Corporate, 128 Channels of Powerful Signal Routing, Use Standalone or as Part of Network, Pristine Sound, Advanced DSP Engine, Intuitive GUI and Remote Control, dMix to dMix dNet AES67 Latency: 0.25 ms, dNet AES67 to Dante Latency: 2 ms, Integrate with Third Party Systems, Reliable 24/7 and Easy to Install, Analog In to Analog Out Latency: 0.3 ms

Max I/O Capacity: 128x Input / 128x Output

Number of Analog Input Channels: 32 (32 Mono)

Number of Mic Preamps: 32

Number of Analog Output Channels: 24

Mix Routing: 8x Stereo Matrix24x Stereo Aux Send12x Stereo Subgroup2x Stereo Headphone

Groups: 6x Mute Group16x DCA Group

Presets: Yes

Faders & Level Adjustment: No

Gain/Trim Range: -4 dB to +50 dB

Input Polarity: Normal/Reverse

Dynamic Processing: Compressor - Multi-Band Compressor - Gate

EQ: Input Channels - Output Buses - Outputs - Subgroups - FX Returns:4-Band Parametric (Mono Channels)

Graphic EQ: 31-Band 1/3 Octave - ±15 dB 20 Hz to 20 kHz

Filters: Input Channels - Outputs - Master - FX Returns - Buses - Mono Channels - Stereo Channels:1x High-Pass: 20 Hz to 9.8 kHz 1x Low-Pass: 20 Hz to 40 kHz

Built-In Effects: 10x Stereo Preset (Factory)

Audio Delay: Yes

Sample Rates: 96 kHz

Bit Depth: 24-Bit

Frequency Response: 20 Hz to 40 kHz ±0.1 dB

Max Input Level: +28 dB at Min Gain

Analog Dynamic Range: 115 dB

I/O Impedance: Input:2.86 Kilohms Output:50 Ohms

THD: Analog InputAnalog :0.001% at +20 dB Gain (-1 dBFS - Inputs) 0.002% at +20 dB Gain (-1 dBFS - Outputs)

Signal Generator: Yes

Analog Inputs: 32x XLR 3-Pin Balanced Mic/Line Input

Analog Outputs: 24x XLR 3-Pin Balanced Line Output

Phantom Power: +48 V

Digital I/O: 2x XLR AES3 Input (I/O)2x XLR AES3 Output (I/O)

MIDI I/O: No

USB I/O: 1x USB-A1x USB-C

Expansion Ports: 1x 1 x 1 I/O Card

Wireless: No

External Display I/O: 1 x HDMI

Rack Mountable: Yes

Rackmount Size: 4 U
