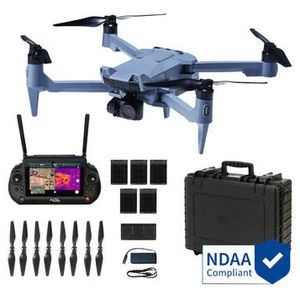

ACSL SOTEN Inspection Bundle Plus
Product Description
The ACSL SOTEN Inspection Bundle Plus is an ideal solution for inspectors due to the integration of a more advanced positioning and communication system SLAS/SBAS enhance standard GNSS to sub-meter positioning for the incredible accuracy required when mapping locations In addition - the SOTEN is equipped with LTE communication support - allowing operators to control the drone via the internet This helps in unforgiving locations to provide autonomous level 3 BVLOS (Beyond Visual Line of Sight) flights When LTE communications are not available - offline maps can be used to plot and manage autonomous flights When in the air - capture highly detailed images and video thanks to the 3-axis CX-GB100 gimbal and 20MP camera capable of recording up to 4K videos
Features: CX-GB100 3-Axis 20MP Camera, Record Videos at up to 4K, 5 x Flight Batteries & 3-Bay Charger, Controller with Built-In Display, Up to 33.5 mph Wind Resistance, Level 3 BVLOS Internet-Based Operation, Support for LTE Communications, 1-Touch Swappable Gimbal, SLAS/SBAS Sub-Meter Positioning
Maximum Horizontal Speed: 34 mph / 15 m/s
Maximum Flight Time: 25 Minutes
Maximum Tilt Angle: Not Specified by Manufacturer
Hovering Accuracy: Not Specified by Manufacturer
Rotor Configuration: Quadcopter
Remote ID: Yes
Number of Cameras: 1
Camera System: 20 MP - 1-inch -Type CMOS Sensor with Lens
ISO Sensitivity Range: 125 to 6400 in Auto Mode
Night Vision: No
Shutter Speed: Electronic Shutter: 1/8000 to 8 Seconds Mechanical Shutter: 1/2000 to 8 Seconds
Maximum Video Resolution: Up to UHD 4K at 30 fps
Still Image Support: Up to 20 MP (DNG / JPEG)
Media/Memory Card Slot: No
Number of Axes: Three: Pitch (Tilt) / Roll / Yaw (Pan)
Control Method: Included Transmitter
Transmission System: Proprietary• Frequencies: 2.4 GHz
Maximum Operating Distance: 2.5 Miles / 4 km
Clean Video Output: Not Specified by Manufacturer
Mobile App Compatible: No
Built-In Display: No
Battery Chemistry: Lithium-Ion
Battery Capacity: 4075 mAh
GNSS Support: Not Specified by Manufacturer
Weight: 4.4 lb / 2 kg (Takeoff)
