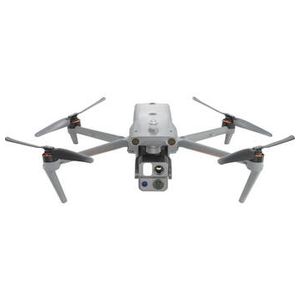

Autel Robotics EVO Max 4T XE Bundle

With the included FusionLight multi-sensor gimbal camera and advanced flight features - the EVO Max 4T XE Bundle from Autel Robotics is an ideal solution for supporting many governmental and private sector missions Whether it's search and rescue - infrastructure inspection - or land surveying - the EVO Max 4T XE can quickly and efficiently get the job done It starts with the FusionLight gimbal - which provides zoom and wide-angle 8K image and 4K video capture - along with a thermal imaging camera - and integrated laser rangefinder To achieve a successful flight in these demanding tasks - the drone also features dual vision systems for 720 degrees obstacle avoidance - enhanced anti-jamming technology - autonomous navigation - and A-Mesh 10 for intelligent fleet control This is coupled with all-weather construction - the SkyLink 3 for 1080p60 - 124-mile real-time transmission - and a flight time of up to 42 minutes per charge

Features: Autonomous Path Finding, Smart Controller V3 Included, FusionLight 4T XE Multi-Sensor Camera, 8K Images & 4K Video Capture, AI Object Identification & Tracking, Dual-Vision 720° Obstacle Avoidance, A-Mesh Drone-to-Drone Communication, Anti-Interference Technology, Thermal Imaging & Laser Rangefinder

Maximum Horizontal Speed: 51.4 mph / 82.8 km/h

Maximum Ascent Speed: 17.9 mph / 28.8 km/h

Maximum Descent Speed: 13.4 mph / 21.6 km/h

Maximum Wind Resistance: 27 mph / 43.5 km/h

Maximum Take-Off Altitude: 2.5 Miles / 4 km

Maximum Flight Time: 42 Minutes

Maximum Hover Time: 38 Minutes

Maximum Tilt Angle: 35 degrees

Hovering Accuracy: Vision PositioningVertical: ±0.3' / 0.1 m Horizontal: ±1.0' / 0.3 m RTKVertical: ±0.49' / 0.15 m GNSSVertical: ±1.6' / 0.5 m Horizontal: ±1.6' / 0.5 m

Maximum Angular Velocity: 300 degrees/s (Pitch)120 degrees/s (Yaw)

Rotor Configuration: Quadcopter

Propeller Size: 11-inch

Remote ID: No

Aircraft I/O: 1x Micro-USB (Data)1x USB-C (Service)

Operating Conditions: -4 to 122 degreesF / -20 to 50 degreesC

Number of Cameras: 3 (Cannot Be Used Simultaneously)

Camera System: Wide48 MP - 1/2-inch -Type CMOS Sensor with 24mm-Equivalent - f/2.8 Lens (83.5 degrees FoV)Zoom48 MP - 1/2-inch -Type CMOS Sensor with 64 to 234mm-Equivalent - f/2.8 Lens (40 to 10.3 degrees FoV)ThermalVanadium Oxide (VOX) Sensor with -4 to 1

Zoom: Zoom160x DigitalThermal16x Digital

Minimum Focus Distance: Wide4.9' / 1.5 mZoom6.6' / 2 mThermal7.2' / 2.2 m

ISO Sensitivity Range: WidePhoto: 100 to 6400 in Auto ModeVideo: 100 to 64 - 000 in Auto ModePhoto: 100 to 12 - 800 in Manual ModeVideo: 100 to 6400 in Manual ModeZoom100 to 6400 in Auto Mode100 to 12 - 800 in Manual Mode

Night Vision: No

Shutter Speed: Wide1/8000 to 8 Seconds (Photo) 1 to 1/8000 Second (Video) Zoom1/8000 to 8 Seconds (Photo) 1 to 1/8000 Second (Video)

Maximum Video Resolution: WideUp to UHD 4K at 30 fps ZoomUp to 4000 x 3000 at 30 fps ThermalUp to 640 x 512 at 30 fps

Still Image Support: WideUp to 50.3 MP (JPEG) Up to 12.6 MP (DNG) Up to 12 MP (JPEG) ZoomUp to 48 MP (JPEG) Up to 12 MP (DNG / JPEG) ThermalUp to .3 MP (JPEG)

Media/Memory Card Slot: In Aircraft BodymicroSD/microSDHC/microSDXC

Internal Storage: In Aircraft Body128 GB

Number of Axes: Three: Pitch (Tilt) / Roll / Yaw (Pan)

Rotation Range: Mechanical RangeYaw (Pan): 180° (-135 to 45°) Roll: 90° (-45 to 45°) Pitch (Tilt): 90° (-45 to 45°)

Follow Speed: 100°/s

Stabilization Accuracy: ±0.005°

Sensing System: Omnidirectional with Radar Enhancement

Sensing System Capabilities: ForwardDetection Range: 1.6 to 101.7' / 0.5 to 31 mField of View: 60 degrees (Horizontal) / 80 degrees (Vertical)BackwardDetection Range: 1.6 to 82.0' / 0.5 to 25 mLateralDetection Range: 1.6 to 85.3' / 0.5 to 26 mUpwardDetection Range: 0.7 to 85.3'

Control Method: Included Transmitter

Transmission System: ProprietaryFrequencies: 2.4 GHz (2.400 to 2.4835) / 5.1 GHz (5.150 to 5.250) / 5.8 GHz (5.725 to 5.850)Power at 2.4G: 20 dBm (CE/FCC)Power at 5.1G: 17 dBm (FCC)Power at 5.8G: 17 dBm (FCC) / 14 dBm (CE)

Maximum Operating Distance: 9.3 Miles / 15 km

Clean Video Output: Not Specified by Manufacturer

Battery Type: Built-In Lithium-Ion (5800 mAh)

Operating Temperature: -4 to 104 degreesF / -20 to 40 degreesC

Mobile App Compatible: No

Built-In Display: 7.9-inch (2048 x 1536) Touchscreen LCD

Battery Chemistry: Lithium-Ion Polymer (LiPo)

Battery Capacity: 8070 mAh / 120 Wh

Battery Configuration: 4 S / 14.88 V

Charging Temperature: 41 to 113 degreesF / 5 to 45 degreesC

Weight: 18.3 oz / 520 g

GNSS Support: GPS - GLONASS - BeiDou - Galileo

Diagonal Size: 1.5' / 464 mm

Overall Dimensions: 22.1 x 5.8 x 25.6-inch / 562.0 x 147.0 x 651.0 mm (Unfolded)10.1 x 5.2 x 5.7-inch / 257.0 x 131.0 x 145.0 mm (Folded)

Weight: 4.2 lb / 1890 g (Takeoff)3.6 lb / 1640 g (With Battery - Gimbal)
