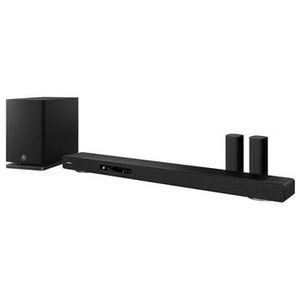

Yamaha True X Surround 90A 512-Channel Dolby Atmos

Features: AURO-3D Support, MusicCast Control & Multi-Room Audio, HDMI, HDMI eARC & Optical Inputs, Wi-Fi, Bluetooth & Airplay Connectivity, Surround:AI Optimizes Sound in Real Time, Rechargeable Wireless Surround Speakers, 5.1.2-Channel True Surround Sound, Wireless Subwoofer

Channel Configuration: 5.1.2-Channel

Enclosure Type: Sealed

Midrange Drivers: 4x 4.3 x 2.1-inch / 11 x 5.3 cm Front-Firing Elliptical Cone

High-Frequency Drivers: 3x 1-inch / 2.5 cm Front-Firing Tweeter12x 1.1-inch / 2.8 cm Up-Firing

Amplifier Output: 330 W

Frequency Response: 120 Hz to 20 kHz (Soundbar)

Impedance: 6 Ohms

Speaker Positioning: Rear

Speaker Configuration: Full-Range

Enclosure Type: Ported

Full-Range Drivers: 1x 2.25-inch / 5.71 cm per Speaker

Satellite Inputs/Outputs: Wireless - Audio

Placement & Mounting Options: Tabletop/Bookshelf

Enclosure Type: Bass-Reflex

Drivers: 1x 6.75-inch / 17.14 cm

Amplifier Output: 100 W

Frequency Response: 33 Hz to 120 Hz

Impedance: 3 Ohms

Subwoofer Inputs/Outputs: Wireless

Inputs: 1x HDMI - Audio/Video1x HDMI - Audio/Video/eARC1x Optical TOSLINK - Audio

Outputs: No

USB I/O: 1x USB-A (Unspecified Interface) (Service)

Ethernet I/O: LAN

Wireless Audio Protocols: AirPlay 2 - Bluetooth

Wireless: Wi-Fi / Bluetooth 4.2

Bluetooth: 4.2

NFC: No

Bluetooth Profiles: A2DP

Bluetooth Codec Support: AACSBC

Mobile App Compatible: Yes: Android & iOSApp Name: MusicCast Controller

HDMI Compliance: ARC - eARC

HDR Support: Yes: HDR10/Dolby Vision/Hybrid Log Gamma

HDCP Support: Yes: Version 1.4/2.3

Input Power: 100 to 240 VAC - 50 / 60 Hz

Wall Mountable: Yes

Recommended Screen Size: 55-inch and Up

Dimensions: 46.5 x 3.4 x 5.6-inch / 118.1 x 8.6 x 14.2 cm (Soundbar)9.5 x 14.9 x 16.3-inch / 24.1 x 37.8 x 41.4 cm (Subwoofer)3.5 x 8.6 x 3.5-inch / 8.9 x 21.8 x 8.9 cm (Satellites)

Weight: 24.3 lb / 11 kg (Soundbar)28 lb / 12.7 kg (Subwoofer)2.2 lb / 1 kg (Each Satellite)
