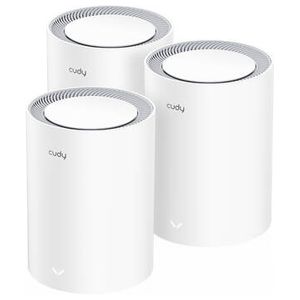

Cudy M3000 AX3000 Wireless Dual-Band Multi-Gig 3-P Product Image

Cudy M3000 AX3000 Wireless Dual-Band Multi-Gig 3-P


Product Description

Enjoy reliable wireless connections while moving from room to room with the Cudy M3000 AX3000 Wireless Dual-Band Multi-Gig Mesh Wi-Fi System Supporting up to 2976 Mb/s transfers over the 24 and 5 GHz bands - this 3-module mesh Wi-Fi 6 (80211ax) system is designed to deliver smooth 4K video streaming and online gaming experiences with 2900 square feet of coverage With 25 Gb/s compatible WAN ports - any of the modules may be configured to be the main router to support multi-Gig internet services The others may be used as satellites to support a total of 256 simultaneously connected devices The wireless signal is tested to pass through up to two 4 thick wooden walls or one 7 concrete wall Alternatively - you can link each module to each other using Ethernet cables for a wired backhaul Use the Cudy app to configure - control - and monitor your network from almost anywhere

Features: Wi-Fi 6 (802.11ax), Up to 2976 Mb/s Throughput, 2.4 GHz / 5 GHz (Dual-Band), 5 x Internal Antennas, Gigabit Ethernet LAN Port, 2.5G Ethernet WAN Port, Cudy Mesh Compatible, Up to 2900 Square Feet Coverage, Flexible Backhaul, Works with Cudy App

Wi-Fi: Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)

Number of Antennas: 5x Internal

Matter Support: No

Supported Protocols: Auto-MDIX/MDIDHCP ServerDMZIGMP SnoopingIPv4IPv6

Bluetooth: No

Throughput: 2976 Mb/s Total 2.4 GHz: 574 Mb/s 5 GHz: 2402 Mb/s

Inputs/Outputs: Each Unit: 1x RJ45 Gigabit Ethernet (LAN)1x RJ45 2.5 GbE (WAN)

Guest Network Support: Yes

Wireless Security: WPA - WPA2 - WPA3

Operation Modes: Access Point - Client - Mesh

Virtual Assistant: No

Mobile App Compatible: Yes: Android & iOS

RAM: 256 MB

Flash Memory: 128 MB

CPU: Dual-Core: Up to 1.3 GHz

Supported IEEE Standards: 802.11a - 802.11ac - 802.11ax - 802.11b - 802.11g - 802.11n

Input Power: 100 to 240 VAC - 50 / 60 Hz

Power Consumption: ≤11.5 W

Environmental Resistance: No

Certifications: CE - FCC

Operating Conditions: 32 to 104 degreesF / 0 to 40 degreesC at 10 to 90% Humidity

Storage Conditions: -40 to 158 degreesF / -40 to 70 degreesC at 5 to 95% Humidity

Dimensions: 4.3 x 6.1-inch / 110.0 x 154.5 mm

Weight: 12.7 oz / 360 g
