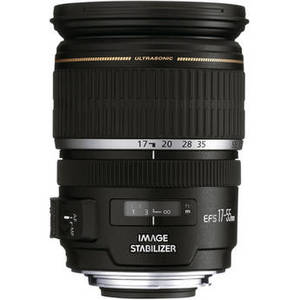

EF-S 17-55mm f/2.8 IS USM Lens


Product Description

A tremendously flexible standard zoom for APS-C-format DSLRs, the EF-S 17-55mm f/2.8 IS USM from Canon pairs the 27.2-88mm equivalent focal length range with a bright f/2.8 constant maximum aperture. Benefitting this design is a sophisticated optical layout, which includes both Ultra-Low Dispersion glass and aspherical elements to significantly reduce chromatic and spherical aberrations for improved clarity and sharpness throughout the zoom range. A Super Spectra coating has also been applied to individual elements to suppress flare and ghosting for increased contrast when working in bright environments.

Beyond the optical attributes, this 17-55mm is also characterized by its advanced three stop-effective Image Stabilizer system to minimize the appearance of camera shake. Also complementing handling is a sophisticated ring-type USM, which provides quick, quiet, and accurate autofocus performance along with full-time manual focus override.
Focal Length 17 to 55mm (35mm Equivalent Focal Length: 27.2 to 88mm)
Maximum Aperture f/2.8
Minimum Aperture f/22
Pinhole Diameter
Lens Mount Canon EF-S
Lens Mount
Lens Mount
Format Compatibility APS-C
Angle of View 78? 30' to 27? 50'
Area of Coverage
Tilt-Shift
Minimum Focus Distance 1.15' / 35 cm
Maximum Magnification 0.17x
Macro Reproduction Ratio
Optical Design 19 Elements in 12 Groups
Diaphragm Blades 7, Rounded
Focus Type Autofocus
Image Stabilization Yes
Leaf Shutter
Tripod Collar
Filter Size 77 mm (Front)
Dimensions (? x L) 3.29 x 4.35" / 83.5 x 110.6 mm
Weight 1.42 lb / 645 g
