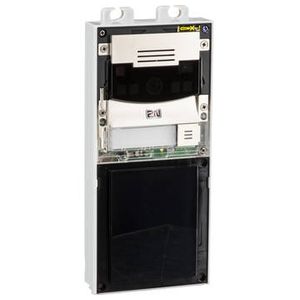

2N IP Verso Main Unit Module with Camera (Nickel)
Product Description
The nickel IP Verso Main Unit with Camera from 2N is the main unit of a modular intercom system that's equipped with a camera that features night vision functionality The camera captures 640 x 480 resolution video in a 120 degrees horizontal field of view and 1280 x 960 JPEG images SIP 20 protocol compliance makes it possible to connect the intercom with IP phones and PBX from other manufacturers without a server Two-way audio communication is possible thanks to a built-in microphone and 2W speaker This module requires two frame/box positions for installation in a mounting box or frame (available separately) This device is IP54 rated for protection from spraying water and IK08 rated for impact protection when installed
Features: 640 x 480 Video Resolution, 1280 x 960 JPEG Resolution, Built-In Microphone & 2W Speaker, 802.3af PoE Interface, Requires 2 Positions in Frame/Box Mount, IP54-Rated Moisture Protection, IK08-Rated Impact Protection, Camera with Night Vision Functionality, Main Unit for Intercom System, Complies with SIP 2.0 Protocol
Protocol: Signalling Protocol: SIP 2.0 (RFC 3261)
Buttons: Transparent Button with White Backlight and Removable Label
Number of Buttons: 1
Numeric Keypad: Available separately
Microphone: Built-In
Speaker: 2 W
Sound Pressure: 78 dB at 1 kHz (3.28' / 1 m)
Codecs: G.711 - G.729 - G.722 - L16/16 kHz
Resolution: JPEG: 1280 x 960 Video Call: 640 x 480
Field of View: Horizontal: 120 degrees Vertical: 90 degrees Diagonal: 145 degrees
Night Vision: Yes
Codecs: H.263 - H.263+ - H.264 - MJPEG - MJPEG-4
Power Supply: 12 V ±15% / 2 A DC or PoE
PoE: PoE 802.3af (Class 0 - 12.95 W)
LAN: 100M RJ45 Ethernet with Auto MDI-X
Switch Output: NC/NO Contacts - Maximum 30 V - 1A AC/DC 8 to 12 VDC Depending on Power Supply (PoE: 10 V - Adapter: Source Voltage Minus 2 V) - Maximum 400 mA
Supported Protocols: SIP 2.0 - DHCP opt. 66 - ONVIF - SMTP - 802.1x - RTSP - RTP - TFTP - HTTP - HTTPS - Syslog
Operating Temperature: -40 to 140 degreesF / -40 to 60 degreesC
Storage Temperature: -40 to 158 degreesF / -40 to 70 degreesC
Operating Relative Humidity: 10 to 95% (Non-Condensing)
IP Rating: IP54
IK Rating: IK08
