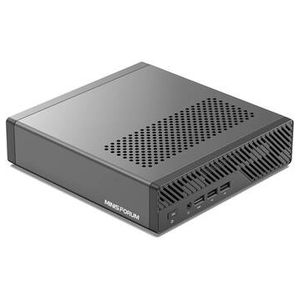

MINISFORUM MS-01 Desktop Workstation
Product Description
Complete challenging tasks with the compact MS-01 Desktop Workstation from MINISFORUM Inside is a 12th Generation Intel Core i5-12600H 12-Core processor with 32GB of DDR5-5200 memory and a 1TB M2 SSD that allows you to smoothly load and multitask applicationsEach of the two USB4 ports can transfer up to 40 Gb/s with compatible devices You can also connect up to 8K resolution displays to them - while the HDMI 20 port supports 4K monitors USB-A 32 Gen 1 and Gen 2 ports are also available The two USB-A 20 ports may be reserved for peripherals such as a separately purchased mouse and keyboard Quickly transfer files with wired networks with dual 25 Gb/s RJ45 Ethernet LAN ports and two SFP+ slots that support up to 10 Gb/s fiber links Windows 11 Pro is preinstalled
Features: Intel Core i5-12600H 12-Core (12th Gen), 32GB 5200 MT/s DDR5 RAM, 1TB M.2 NVMe SSD, Integrated Iris Xe Graphics, 2 x 2.5G RJ45 Ethernet Ports, 2 x 10G SFP Ports, USB4 | USB 3.2 Gen 1, Gen 2, and 2.0, HDMI | 3.5mm, PCIe 4.0 x16 Expansion Slot, Windows 11 Pro
Color: Black
Operating System: Windows 11 Pro
Processor: Intel Core i5-12600H (12th Gen)
CPU Socket: BGA 1744
CPU: 12-Core: Up to 4.5 GHz Performance (4 Cores)Up to 3.3 Efficiency (8 Cores)
Dedicated AI Cores: No
L3 Cache: 18 MB
Graphics Type: Integrated
GPU: Intel Iris Xe
Installed RAM: 32 GB
RAM Type: 5200 MT/s DDR5
RAM Configuration / Capacity: / 2 Slots Supporting up to 64 GB (SO-DIMM)
Total Installed Storage: 1 TB
Storage Drive Type: 1x 1 TB / M.2 NVMe SSD
Storage Expansion: 1x M.2 Slot 2280 (PCIe 4.0 x4) [Occupied]1x M.2 Slot 2280 (PCIe 3.0 x4) [Available]1x M.2 Slot 2280 (PCIe 3.0 x2) [Available]
PCI Expansion: 1x PCIe 4.0 x8 [x16 Mechanical] (Available)1x M.2 2230 (E-Key) (Available)
Optical Drive: No
External Bays: No
Inputs/Outputs: 2x USB-C (USB4)2x USB-A 3.1/3.2 Gen 21x USB-A 3.0 / 3.1/3.2 Gen 12x USB-A 2.0
Display I/O: 1x HDMI 2.0 Output
Audio I/O: 1x 1/8-inch / 3.5 mm Headphone/Microphone Input/Output
Network I/O: 2x RJ45 (2.5 GbE)2x SFP+ (10 GbE)
Built-In Speakers: No
Built-In Microphones: No
Media/Memory Card Slot: No
Wi-Fi: No
Bluetooth: No
Keyboard: No
Pointing Device: No
Input Power: 19 VDC
Dimensions: 7.7 x 7.4 x 1.9-inch / 196 x 189 x 48 mm
