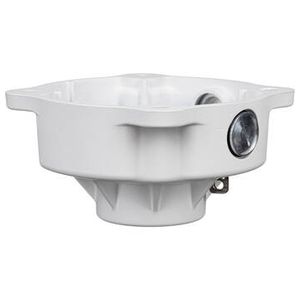

Hanwha Vision SBP-302CMBW Back Box for SBP-302CMW Product Image

Hanwha Vision SBP-302CMBW Back Box for SBP-302CMW


Product Description

The white SBP-302CMBW Back Box from Hanwha Vision is designed to mount the SBP-302CMW Pendant Mount for mounting a camera The box features two side conduit holes and a back hole for routing cables - and it also features a safety hook for secure installationThe back box is compatible with 15 threaded pipe - such as the 6 long SBP-302CM-06W - 12 long SBP-302CM(W) - and 36 long SBP-302CM(W) It is also compatible with the separately available SBP-302CMS(W) swivel mount adapter to add a ±45 degrees swivel angle to the mount

Features: Works with Optional Swivel Adapter, Conduit Access & Cable Management, Designed to Mount a Camera on Pendant, Pendant Pole Screws Into Fixed Box, Use with Telescoping Pendant Mount

Environment: Indoor - Outdoor

Cable Routing: Yes

Color: White

Pan: No

Tilt: No

Roll: No

Mounting: Accessory/Camera Mount

Compatible Pipe: 1.5-inch / 38.1 mm Diameter Pipe with 1-1/2-inch NPT Male Screw

Materials: Aluminum - Steel

Dimensions: 5.9 x 5.9 x 3.1-inch / 150 x 150 x 80 mm

Weight: 25.8 oz / 730 g
