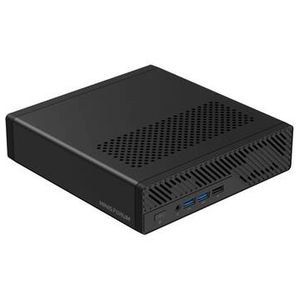

MINISFORUM MS-A2 Desktop Workstation
Product Description
Despite its deceptively compact size - the MS-A2 Desktop Workstation from MINISFORUM delivers the power to help you take on big tasks such as 3D modeling and AI trainingInside is an AMD Ryzen 9 9955HX 16-Core processor with 32GB of DDR5-5600 memory and a 1TB M2 NVMe PCIe 40 SSD that helps you quickly load and multitask demanding applications Integrated AMD Radeon 610M graphics allow you to connect up to three 8K displays to the HDMI 21 and dual 10 Gb/s compatible USB-C 32 Gen 2 ports USB-A 32 Gen 1 and 2 slots are also available The USB-A 20 port may be reserved for peripherals such as a separately purchased wireless mouse and keyboard adapter Quickly transfer files with wired networks with dual 25 Gb/s RJ45 Ethernet LAN ports and two SFP+ slots that support up to 10 Gb/s fiber links Wi-Fi 6E (80211ax) support lets you connect to compatible wireless networks - and you can pair the system with Bluetooth devices Windows 11 Pro is preinstalled
Features: 2.5 GHz AMD Ryzen 9 9955HX 16-Core, 32GB 5600 MT/s DDR5 RAM, 1TB M.2 NVMe PCIe 4.0 SSD, Integrated AMD Radeon 610M Graphics, 2 x 2.5G RJ45 Ethernet Ports, 2 x 10G SFP+ Ports, Wi-Fi 6E (802.11ax) | Bluetooth 5.2, USB 3.2 Gen 1, 2 & 2.0 | HDMI | 3.5mm, PCIe 4.0 x16 Expansion Slot, Windows 11 Pro
Color: Black
Operating System: Windows 11 Pro
Processor: AMD Ryzen 9 9955HX
CPU Socket: FL1
CPU: 16-Core: 2.5 to 5.4 GHz
Dedicated AI Cores: No
L3 Cache: 64 MB
Graphics Type: Integrated
GPU: AMD Radeon 610M
Installed RAM: 32 GB
RAM Type: 5600 MT/s DDR5
RAM Configuration / Capacity: 2x User-Replaceable 16 GB Module / 2 Slots Supporting up to 96 GB (SO-DIMM)
Total Installed Storage: 1 TB
Storage Drive Type: 1x 1 TB / M.2 NVMe SSD
Storage Expansion: 1x M.2 Slot 2280 (PCIe 4.0 x4) [Occupied]2x M.2 Slot 22110 (SATA / PCIe 4.0 x4) [Available]
PCI Expansion: 1x PCIe 4.0 x8 [x16 Mechanical] (Available)
Optical Drive: No
External Bays: No
Inputs/Outputs: 2x USB-C 3.1/3.2 Gen 2 / Supports Video Alt Mode1x USB-A 3.1/3.2 Gen 23x USB-A 3.0 / 3.1/3.2 Gen 11x USB-A 2.0
Display I/O: 1x HDMI 2.1 Output
Audio I/O: 1x 1/8-inch / 3.5 mm Headphone/Microphone Input/Output
Network I/O: 2x RJ45 (2.5 GbE)2x SFP+ (10 GbE)
Built-In Speakers: No
Built-In Microphones: No
Media/Memory Card Slot: No
Wi-Fi: Wi-Fi 6E (802.11ax); Tri-Band (2.4 - 5 - & 6 GHz) with MU-MIMO Support
Bluetooth: Bluetooth 5.2
Keyboard: No
Pointing Device: No
Dimensions: 7.7 x 7.4 x 1.9-inch / 196 x 189 x 48 mm
Weight: 3.1 lb / 1.4 kg
